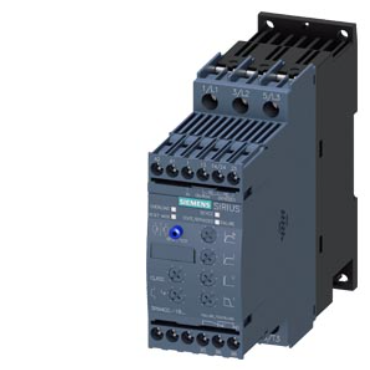

Siemens 3RW4038-2BB04 soft starter, SIRIUS soft starter S2 72 A, 37kW/400 V, 40 °C 200-480V AC, 24V AC/DC spring-type terminals.

General technical data

Product brand name: SIRIUS

Product designation: Soft starter

Product feature

● integrated bypass contact system Yes

● thyristors Yes

Product function

● intrinsic device protection Yes

● motor overload protection Yes

● evaluation of thermistor motor protection No

● external reset Yes

● adjustable current limitation Yes

● inside-delta circuit No

Product component motor brake output No

Insulation voltage rated value 600V

Degree of pollution 3, acc. to IEC 60947-4-2

Blocking voltage of the thyristor maximum 1600V

Reference code according to EN 61346-2 Q

Reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750 G

Power Electronics

Operational current

● at 40 °C rated value 72A

● at 50 °C rated value 62A

● at 60 °C rated value 60A

Yielded mechanical performance for 3-phase motors

● at 230 V

— at standard circuit at 40 °C rated value 22kW

● at 400 V

— at standard circuit at 40 °C rated value 37kW

Yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value 20hp

Operating frequency rated value 50 ... 60Hz

Relative negative tolerance of the operating frequency -10%

Relative positive tolerance of the operating frequency 10%

Operating voltage at standard circuit rated value 200 ... 480V

Relative negative tolerance of the operating voltage at standard circuit -15%

Relative positive tolerance of the operating voltage at standard circuit 10%

Minimum load [%] 20%

Adjustable motor current for motor overload protection minimum rated value 35A

Continuous operating current [% of Ie] at 40 °C 115%

Power loss [W] at operational current at 40 °C during operation typical 15W

Control circuit/ Control

Type of voltage of the control supply voltage AC/DC

Control supply voltage frequency 1 rated value 50Hz

Control supply voltage frequency 2 rated value 60Hz

Relative negative tolerance of the control supply voltage frequency  -10%

Relative positive tolerance of the control supply voltage frequency 10%

Control supply voltage 1 at AC at 50 Hz 24V

Control supply voltage 1 at AC at 60 Hz 24V

Relative negative tolerance of the control supply voltage a AC at 50 Hz -15%

Relative positive tolerance of the control supply voltage at AC at 50 Hz 10%

Relative negative tolerance of the control supply voltage at AC at 60 Hz -15%

Relative positive tolerance of the control supply voltage at AC at 60 Hz 10%

Control supply voltage 1 at DC 24V

Relative negative tolerance of the control supply voltage at DC -20%

Relative positive tolerance of the control supply voltage at DC 10%

Display version for fault signal: red

Mechanical data

Size of engine control device: S2

Width: 55mm

Height: 160mm

Depth: 170mm

Fastening method: screw and snap-on mounting

Mounting position: With additional fan: With vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back

Without additional fan: With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° t

Required spacing with side-by-side mounting

● upwards: 60mm

● at the side: 30mm

● downwards: 40mm

Wire length maximum: 300m

Number of poles for main current circuit: 3
