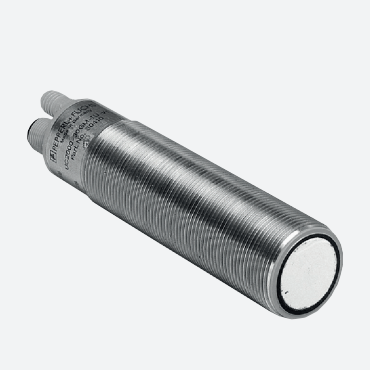

Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic sensor, parameterization interface for the application-specific adjustment.

Technical Data

General specifications

Sensing range 80 ... 2000 mm

Adjustment range 120 ... 2000 mm

Dead band 0 ... 80 mm

Standard target plate 100 mm x 100 mm

Transducer frequency approx. 180 kHz

Response delay 65 ms minimum

195 ms factory setting

Indicators/operating means

LED green solid: Power-on

flashing: Standby mode or program function object detected

LED yellow 1 solid: object in evaluation range

flashing: program function

LED yellow 2 solid: object in detection range

flashing: program function

LED red solid: temperature/program plug not connected

flashing: fault or program function object not detected

Temperature/teach-in connector Temperature compensation , Evaluation range programming , output function setting

Electrical specifications

Operating voltage UB 10 ... 30 V DC , ripple 10 %SS

Power consumption P0 ≤ 900 mW

Time delay before availability tv ≤ 500 ms

Interface

Interface type RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit

Input/Output

Synchronization bi-directional

0 level -UB...+1 V

1 level: +4 V...+UB

input impedance: > 12 KOhm

synchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms

Synchronization frequency

Common mode operation max. 30 Hz

Multiplex operation ≤ 30 Hz / n , n = number of sensors , n ≤ 5

Output

Output type 1 current output 4 ... 20 mA

1 voltage output 0 ... 10 V

Resolution evaluation range [mm]/4000, but ≥ 0.35 mm

Deviation of the characteristic curve ≤ 0.2 % of full-scale value

Repeat accuracy ≤ 0.1 % of full-scale value

Load impedance current output: ≤ 500 Ohm

voltage output: ≥ 1000 Ohm

Temperature influence ≤ 2 % from full-scale value (with temperature compensation)

≤ 0.2 %/K (without temperature compensation)
