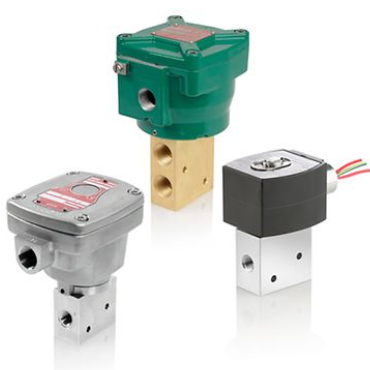

ASCO 8327C312F29YTH1 Series of 327C High-Flow Direct Acting Valves, Standard, Pipe Threade, 1/2" NPT, SS, Surge Suppression | *TK, 24/DC | 1.9W, NPT Body Connection.

Performance Data

Construction: Standard Construction

Enclosures: Epoxy powder coated Aluminum or 316L Stainless Steel

Flow, Kv (Cv): Standard: 0.7 (0.8); NVR, TP-NVR: 0.95 (1.1)

Maximum Operating Pressure Differential, bar (psi): 12 (174)

Fluid Media: Air, Inert Gas, Water, Light Oil

Maximum Viscosity mm2 /s cSt: 65

Ambient and Fluid Temperature, Standard FKM Seals, °C (°F): UL, C/US: -20 to 84 (-4 to 183) for ≤24VDC, up to 80 (176) for all other voltages ATEX: -20 to 90 (-4 to 194)

Ambient and Fluid Temperature, Low-Temperature FVMQ Seals, °C (°F): -60 to 60 (-76 to 140)

Construction

Body: 316L Stainless Steel

Core Tube: 316L Stainless Steel

Stem & Insert: 316L Stainless Steel

Core & Plugnut: 430F Stainless Steel

O-ring Holder: 316L Stainless Steel

Springs: 17-7 Stainless Steel

Discs: FKM

Rider Ring: PTFE Graphite filled

Temporary Connector: Polypropylene

Port Type: NPT Body Connection

Prodict Series: 3 Way - Direct Acting

Revision: 3rd Generation

Power< 2 Watts

Construction: Standard Construction Low Temperature 12 Bar Pressure Max

Body Material: Stainless Steel

Electrical Connection Type: Aluminum Flameproof Direct Cable Entry 20mm +Surge Suppression enclosure

Voltage: 24/DC Class H

ASCO series 327C related model:

8327C102F392LH9
8327C102F39YTHN

8327C102FN9YTH0

8327C112FS9YTH0

8327C302F392JH1

8327C302F392KH1

8327C302F39YTH1

8327C302F49YTH1

8327C302F89YTH1

8327C302F29YTH1

8327C312F89YTH1

8327C312F29YTH1

8327C302F892MH1

8327C302F392NH1

8327C305F292JH1

8327C305F39YTH1

8327C305F892JH1

G327C102F392LH9

G327C102F39YTHN

G327C102FN9YTH0

G327C112FS9YTH0

G327C302F392JH1

G327C302F392KH1

G327C302F39YTH1

G327C302F49YTH1

G327C302F89YTH1

G327C302F29YTH1

G327C312F89YTH1

G327C312F29YTH1

G327C302F892MH1

G327C302F392NH1

G327C305F292JH1

G327C305F39YTH1

G327C305F892JH1

J327C102F392LH9

J327C102F39YTHN

J327C102FN9YTH0

J327C112FS9YTH0

J327C302F392JH1

J327C302F392KH1

J327C302F39YTH1

J327C302F49YTH1

J327C302F89YTH1

J327C302F29YTH1

J327C312F89YTH1

J327C312F29YTH1

J327C302F892MH1

J327C302F392NH1

J327C305F292JH1

J327C305F39YTH1

J327C305F892JH1
