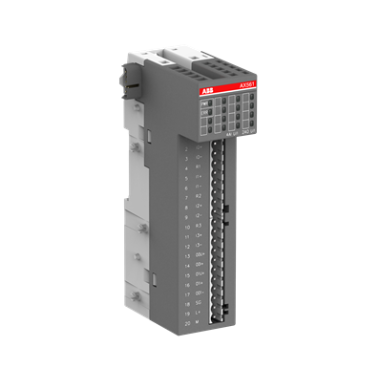

ABB 1TNE968902R1301 AX561 S500 Analog input/output module.

General Information

Extended Product Type: AX561

Product ID: 1TNE968902R1301

ABB Type Designation: AX561

EAN: 6943747170190

Catalog Description: Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561)

Long Description: AX561: S500 Analog input/output module. 4 AI: U, I. 2 AO: U, I. 1-wire.

Dimensions

Product Net Weight: 0.122 kg

Product Net Depth / Length: 135 mm

Product Net Height: 74 mm

Product Net Width: 34 mm

Gross Weight: 0.225 kg

Package Level 1 Depth / Length: 93 mm

Package Level 1 Height: 63 mm

Package Level 1 Width: 170 mm

Package Level 1 Units: 1 carton
