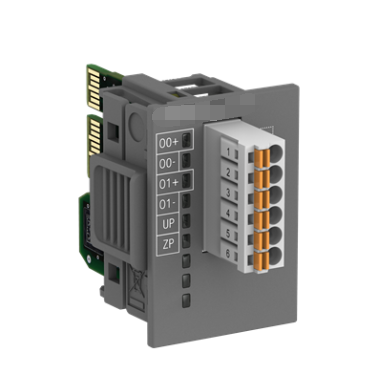

ABB 1SAP187100R0004 TA5122-2AI-TC AC500-eCo Analog input option board.

Gerneral information

Extended Product Type: TA5122-2AI-TC

Product ID: 1SAP187100R0004

ABB Type Designation: TA5122-2AI-TC

EAN: 4013614561450

Catalog Description: Analog input option board. 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16 Bit. Spring terminals included (TA5123-2AI-RTD)

Long Description: TA5122-2AI-TC: AC500-eCo Analog input option board. 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16 Bit. Spring terminals included.

Dimensions

Product Net Weight: 0.015 kg

Product Net Depth / Length: 54.2 mm

Product Net Height: 42 mm

Product Net Width: 28.5 mm

Gross Weight: 0.035 kg

Package Level 1 Depth / Length: 70 mm

Package Level 1 Height: 50 mm

Package Level 1 Width: 40 mm

Package Level 1 Units: 1 carton

Technical

Function: 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16 Bit. Spring terminals included

Number of Analog Configurable I/Os: 0

Analog Inputs: 2

Input Signal: TC

Resolution: Analog Input 16 bit

Degree of Protection: Housing IP20
