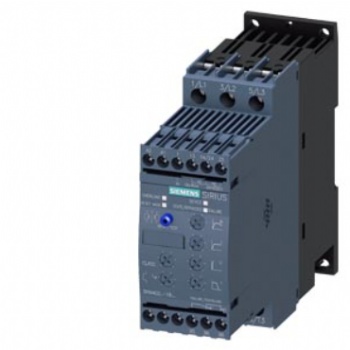

Siemens 3RW5077-2TB15 soft starter, SIRIUS soft starter 200-600V 570 A, 110-250V AC Spring-loaded terminals Thermistor input.

Manufacturer's article number

● of standard HMI module usable 3RW5980-0HS01

● of high feature HMI module usable 3RW5980-0HF00

● of communication module PROFINET standard usable 3RW5980-0CS00

● of communication module PROFIBUS usable 3RW5980-0CP00

● of communication module Modbus TCP usable 3RW5980-0CT00

● of communication module Modbus RTU usable 3RW5980-0CR00

● of communication module Ethernet/IP 3RW5980-0CE00

● of circuit breaker usable at 400 V 3VA2220-7MN32-0AA0; Type of assignment 1, Iq = 65 kA

● of circuit breaker usable at 500 V 3VA2220-7MN32-0AA0; Type of assignment 1, Iq = 65 kA

● of the gG fuse usable up to 690 V 3NA3244-6; Type of coordination 1, Iq = 65 kA

● of full range R fuse link for semiconductor protection usable up to 690V 3NE1 230-0; Type of coordination 2, Iq = 65 kA

● of back-up R fuse link for semiconductor protection usable up to 690V 3NE3 335; Type of coordination 2, Iq = 65 kA

● of line contactor usable up to 480 V 3TF68

● of line contactor usable up to 690 V 3TF68

General technical data

starting voltage [%] 30 ... 100 %

stopping voltage [%] 50 %; non-adjustable

start-up ramp time of soft starter 0 ... 20 s

ramp-down time of soft starter 0 ... 20 s

current limiting value [%] adjustable 130 ... 700 %

certificate of suitability

● CE marking Yes

● UL approval Yes

● CSA approval Yes

product component

● HMI-High Feature No

● is supported HMI-Standard Yes

● is supported HMI-High Feature Yes

product feature integrated bypass contact system Yes

number of controlled phases 2

buffering time in the event of power failure

● for main current circuit 100 ms

● for control circuit 100 ms

insulation voltage rated value 600V

degree of pollution 3, acc. to IEC 60947-4-2

impulse voltage rated value 6kV

blocking voltage of the thyristor maximum 1600V

service factor 1

surge voltage resistance rated value 6kV

maximum permissible voltage for protective separation

● between main and auxiliary circuit 600V

shock resistance 15 g / 11 ms, from 12 g / 11 ms with potential contact lifting

vibration resistance 15 mm to 6 Hz; 2g to 500Hz

utilization category according to IEC 60947-4-2 AC-53a

reference code according to IEC 81346-2 Q

Substance Prohibitance (Date) 09/23/2019

SVHC substance name:

Lead - 7439-92-1

Lead monoxide (lead oxide) - 1317-36-8

2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol - 79-94-7

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one - 71868-10-5

6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol - 119-47-1

Weight 8.5kg

product function

● ramp-up (soft starting) Yes

● ramp-down (soft stop) Yes

● Soft Torque Yes

● adjustable current limitation Yes

● pump ramp down Yes

● intrinsic device protection Yes

● motor overload protection Yes; Electronic motor overload protection

● evaluation of thermistor motor protection No

● auto-RESET Yes

● manual RESET Yes

● remote reset Yes; By turning off the control supply voltage

● communication function Yes

● operating measured value display Yes; Only in conjunction with special accessories

● error logbook Yes; Only in conjunction with special accessories

● via software parameterizable No

● via software configurable Yes

● PROFIenergy Yes; in connection with the PROFINET Standard communication module

● voltage ramp Yes

● torque control No

● analog output Yes; 4 ... 20 mA (default) / 0 ... 10 V (parameterizable with High Feature HMI)

Power Electronics

operational current

● at 40 °C rated value 570 A

● at 50 °C rated value 504 A

● at 60 °C rated value 480 A

operating voltage

● rated value 200 ... 600 V

relative negative tolerance of the operating voltage -15 %

relative positive tolerance of the operating voltage 10 %

operating power for 3-phase motors

● at 230 V at 40 °C rated value 160 kW

● at 400 V at 40 °C rated value 315 kW

● at 500 V at 40 °C rated value 355 kW

Operating frequency 1 rated value 50 Hz

Operating frequency 2 rated value 60 Hz

relative negative tolerance of the operating frequency -10 %

relative positive tolerance of the operating frequency 10 %

adjustable motor current

● at rotary coding switch on switch position 1 240 A

● at rotary coding switch on switch position 2 262 A

● at rotary coding switch on switch position 3 284 A

● at rotary coding switch on switch position 4 306 A

● at rotary coding switch on switch position 5 328 A

● at rotary coding switch on switch position 6 350 A

● at rotary coding switch on switch position 7 372 A

● at rotary coding switch on switch position 8 394 A

● at rotary coding switch on switch position 9 416 A

● at rotary coding switch on switch position 10 438 A

● at rotary coding switch on switch position 11 460 A

● at rotary coding switch on switch position 12 482 A

● at rotary coding switch on switch position 13 504 A

● at rotary coding switch on switch position 14 526 A

● at rotary coding switch on switch position 15 548 A

● at rotary coding switch on switch position 16 570 A

● minimum 240 A

minimum load [%] 15 %; Relative to smallest settable Ie

power loss [W] for rated value of the current at AC

● at 40 °C after startup 73 W

● at 50 °C after startup 57 W

● at 60 °C after startup 47 W

power loss [W] at AC at current limitation 350 %

● at 40 °C during startup 7019 W

● at 50 °C during startup 5801 W

● at 60 °C during startup 5048 W

Type of the motor protection: Electronic, tripping in the event of thermal overload of the motor.
